#include <Craft.h>

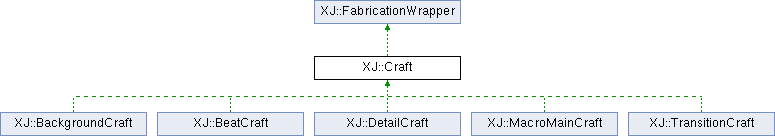

Inheritance diagram for XJ::Craft:

Classes
class	ChoiceIndexProvider

class	InstrumentProvider

class	LambdaChoiceIndexProvider

class	LambdaInstrumentProvider

class	Section

Public Member Functions
	Craft (Fabricator *fabricator)

bool	isIntroSegment (const SegmentChoice *choice) const

bool	isOutroSegment (const SegmentChoice *choice) const

bool	isSilentEntireSegment (const SegmentChoice *choice) const

bool	isActiveEntireSegment (const SegmentChoice *choice) const

void	craftNoteEventArrangements (float tempo, const SegmentChoice *choice, bool defaultAtonal)

void	precomputeDeltas (const std::function< bool(const SegmentChoice *)> &choiceFilter, const ChoiceIndexProvider &setChoiceIndexProvider, const std::vector< std::string > &layersInCraftOrder, const std::set< std::string > &layerPrioritizationSearches, const int numLayersIncoming)

std::optional< const Program * >	chooseFreshProgram (Program::Type programType, std::optional< Instrument::Type > voicingType) const

std::optional< const Instrument * >	chooseFreshInstrument (Instrument::Type type, const std::set< std::string > &requireEventNames) const

std::optional< const InstrumentAudio * >	chooseFreshInstrumentAudio (const std::set< Instrument::Type > &types, const std::set< Instrument::Mode > &modes, const std::set< UUID > &avoidIds, const std::set< std::string > &preferredEvents) const

std::optional< const InstrumentAudio * >	selectNewChordPartInstrumentAudio (const Instrument *instrument, const Chord &chord) const

std::set< const InstrumentAudio * >	selectGeneralAudioIntensityLayers (const Instrument *instrument) const

Static Public Member Functions
static bool	inBounds (int floor, int ceiling, float value)

static bool	isUnlimitedIn (const SegmentChoice &choice)

static bool	isUnlimitedOut (const SegmentChoice &choice)

Public Attributes
ChoiceIndexProvider	choiceIndexProvider = {}

Protected Member Functions
std::set< const Program * >	programsDirectlyBound (const std::set< const Program * > &programs) const

std::set< const Instrument * >	instrumentsDirectlyBound (const std::set< const Instrument * > &instruments) const

std::set< const InstrumentAudio * >	audiosDirectlyBound (const std::set< const InstrumentAudio * > &instrumentAudios) const

std::set< const InstrumentAudio * >	audiosPublished (const std::set< const InstrumentAudio * > &instrumentAudios) const

bool	computeMute (Instrument::Type instrumentType) const

void	pickInstrumentAudio (const SegmentChoiceArrangement arrangement, const InstrumentAudio audio, long startAtSegmentMicros, long lengthMicros, const std::string &event) const

std::set< const InstrumentAudio * >	selectAudioIntensityLayers (std::set< const InstrumentAudio * > audios, const int layers) const

void	craftNoteEvents (float tempo, const ProgramSequence sequence, const std::set< const ProgramVoice > &voices, LambdaInstrumentProvider instrumentProvider)

void	craftChordParts (float tempo, const Instrument *instrument)

void	craftChordParts (float tempo, const Instrument instrument, const SegmentChoice choice)

void	craftEventParts (float tempo, const Instrument instrument, const Program program)

int	computeDeltaIn (const SegmentChoice *choice)

int	computeDeltaOut (const SegmentChoice *choice)

Protected Member Functions inherited from XJ::FabricationWrapper
	FabricationWrapper (Fabricator *fabricator)

FabricationException	exception (const std::string &message) const

std::string	formatLog (const std::string &message) const

void	reportMissing (const std::map< std::string, std::string > &traces) const

Static Protected Member Functions
static std::set< const Program * >	programsPublished (const std::set< const Program * > &programs)

static std::set< const Instrument * >	instrumentsPublished (const std::set< const Instrument * > &instruments)

Protected Attributes
std::map< std::string, int >	deltaIns

std::map< std::string, int >	deltaOuts

std::set< Instrument::Type >	finalizeAudioLengthsForInstrumentTypes

Protected Attributes inherited from XJ::FabricationWrapper
Fabricator *	fabricator

Detailed Description

Arrangement of Segment Events is a common foundation for all craft

Constructor & Destructor Documentation

◆ Craft()

Craft::Craft ( Fabricator * fabricator )

explicit

Must extend this class and inject

Parameters

fabricator internal

Member Function Documentation

◆ audiosDirectlyBound()

std::set< const InstrumentAudio * > Craft::audiosDirectlyBound ( const std::set< const InstrumentAudio * > & instrumentAudios ) const

protected

Filter only the directly bound instrumentAudios

Parameters

instrumentAudios to filter

Returns: filtered instrumentAudios

◆ audiosPublished()

std::set< const InstrumentAudio * > Craft::audiosPublished ( const std::set< const InstrumentAudio * > & instrumentAudios ) const

protected

Filter only the published instrumentAudios

Parameters

instrumentAudios to filter

Returns: filtered instrumentAudios

◆ chooseFreshInstrument()

std::optional< const Instrument * > Craft::chooseFreshInstrument	(	Instrument::Type	type,
		const std::set< std::string > &	requireEventNames
	)		const

Choose instrument

Choose drum instrument to fulfill beat program event names https://github.com/xjmusic/xjmusic/issues/253

Parameters

type	of instrument to choose from
requireEventNames	instrument candidates are required to have event names https://github.com/xjmusic/xjmusic/issues/253

Returns: Instrument

◆ chooseFreshInstrumentAudio()

std::optional< const InstrumentAudio * > Craft::chooseFreshInstrumentAudio	(	const std::set< Instrument::Type > &	types,
		const std::set< Instrument::Mode > &	modes,
		const std::set< UUID > &	avoidIds,
		const std::set< std::string > &	preferredEvents
	)		const

Percussion-type Loop-mode instrument audios are chosen in order of priority https://github.com/xjmusic/xjmusic/issues/255

Choose drum instrument to fulfill beat program event names https://github.com/xjmusic/xjmusic/issues/253

Parameters

types	of instrument to choose from
modes	of instrument to choose from
avoidIds	to avoid, or empty list
preferredEvents	instrument candidates are required to have event names https://github.com/xjmusic/xjmusic/issues/253

Returns: Instrument

◆ chooseFreshProgram()

std::optional< const Program * > Craft::chooseFreshProgram	(	Program::Type	programType,
		std::optional< Instrument::Type >	voicingType
	)		const

Choose a fresh program based on a set of memes

Parameters

programType	to choose
voicingType	(optional) for which to choose a program for– and the program is required to have this type of voice

Returns: Program

◆ computeDeltaIn()

int Craft::computeDeltaIn ( const SegmentChoice * choice )

protected

Get the delta in for the given voice

Parameters

choice for which to get delta in

Returns: delta in for given voice

◆ computeDeltaOut()

int Craft::computeDeltaOut ( const SegmentChoice * choice )

protected

Get the delta out for the given voice

Parameters

choice for which to get delta out

Returns: delta out for given voice

◆ computeMute()

bool Craft::computeMute ( Instrument::Type instrumentType ) const

protected

Compute a mute value, based on the template config

Parameters

instrumentType of instrument for which to compute mute

Returns: true if muted

◆ craftChordParts() [1/2]

void Craft::craftChordParts	(	float	tempo,
		const Instrument *	instrument
	)

protected

Chord instrument mode https://github.com/xjmusic/xjmusic/issues/235

Parameters

tempo	of main program
instrument	for which to craft choices @on failure

◆ craftChordParts() [2/2]

void Craft::craftChordParts	(	float	tempo,
		const Instrument *	instrument,
		const SegmentChoice *	choice
	)

protected

Chord instrument mode https://github.com/xjmusic/xjmusic/issues/235

Parameters

tempo	of main program
instrument	chosen
choice	for which to craft chord parts @on failure

◆ craftEventParts()

void Craft::craftEventParts	(	float	tempo,
		const Instrument *	instrument,
		const Program *	program
	)

protected

Event instrument mode

Parameters

tempo	of main program
instrument	for which to craft choices
program	for which to craft choices @on failure

◆ craftNoteEventArrangements()

void Craft::craftNoteEventArrangements	(	float	tempo,
		const SegmentChoice *	choice,
		bool	defaultAtonal
	)

Craft the arrangement for a given voice

Choice inertia https://github.com/xjmusic/xjmusic/issues/242 Perform the inertia analysis, and determine whether they actually use the new choice or not IMPORTANT** If the previously chosen instruments are for the previous main program as the current segment, the inertia scores are not actually added to the regular scores or used to make choices– this would prevent new choices from being made. Inertia must be its own layer of calculation, a question of whether the choices will be followed or whether the inertia will be followed thus the new choices have been made, we know where we're going next, but we aren't actually using them yet until we hit the next main program in full, N segments later.

Ends with a pass to set the actual length of one-shot audio picks One-shot instruments cut off when other notes played with same instrument, or at end of segment https://github.com/xjmusic/xjmusic/issues/243

Parameters

tempo	of main program
choice	to craft arrangements for
defaultAtonal	whether to default to a single atonal note, if no voicings are available @on failure

◆ craftNoteEvents()

void Craft::craftNoteEvents	(	float	tempo,
		const ProgramSequence *	sequence,
		const std::set< const ProgramVoice * > &	voices,
		LambdaInstrumentProvider	instrumentProvider
	)

protected

Segments have intensity arcs; automate mixer layers in and out of each main program https://github.com/xjmusic/xjmusic/issues/233

Parameters

tempo	of main program
sequence	for which to craft choices
voices	for which to craft choices
instrumentProvider	from which to get instruments @on failure

◆ inBounds()

bool Craft::inBounds	(	int	floor,
		int	ceiling,
		float	value
	)

static

Whether a position is in the given bounds

Parameters

floor	of boundary
ceiling	of boundary
value	to test for within bounds

Returns: true if value is within bounds (inclusive)

◆ instrumentsDirectlyBound()

std::set< const Instrument * > Craft::instrumentsDirectlyBound ( const std::set< const Instrument * > & instruments ) const

protected

Filter only the directly bound instruments

Parameters

instruments to filter

Returns: filtered instruments

◆ instrumentsPublished()

std::set< const Instrument * > Craft::instrumentsPublished ( const std::set< const Instrument * > & instruments )

staticprotected

Filter only the published instruments

Parameters

instruments to filter

Returns: filtered instruments

◆ isActiveEntireSegment()

bool Craft::isActiveEntireSegment ( const SegmentChoice * choice ) const

Whether the given choice is fully active during the current segment

Parameters

choice to test for activation

Returns: true if this choice is active the entire time

◆ isIntroSegment()

bool Craft::isIntroSegment ( const SegmentChoice * choice ) const

Whether the current segment contains the delta in for the given choice

Parameters

choice to test whether the current segment contains this choice delta in

Returns: true if the current segment contains the given choice's delta in

◆ isOutroSegment()

bool Craft::isOutroSegment ( const SegmentChoice * choice ) const

Whether the current segment contains the delta out for the given choice

Parameters

choice to test whether the current segment contains this choice delta out

Returns: true if the current segment contains the given choice's delta out

◆ isSilentEntireSegment()

bool Craft::isSilentEntireSegment ( const SegmentChoice * choice ) const

Whether the given choice is silent during the entire segment

Parameters

choice to test for silence

Returns: true if choice is silent the entire segment

◆ isUnlimitedIn()

bool Craft::isUnlimitedIn ( const SegmentChoice & choice )

static

Whether a given choice has deltaIn unlimited

Parameters

choice to test

Returns: true if deltaIn is unlimited

◆ isUnlimitedOut()

bool Craft::isUnlimitedOut ( const SegmentChoice & choice )

static

Whether a given choice has deltaOut unlimited

Parameters

choice to test

Returns: true if deltaOut is unlimited

◆ pickInstrumentAudio()

void Craft::pickInstrumentAudio	(	const SegmentChoiceArrangement *	arrangement,
		const InstrumentAudio *	audio,
		long	startAtSegmentMicros,
		long	lengthMicros,
		const std::string &	event
	)		const

protected

Pick the transition

Parameters

arrangement	to pick
audio	to pick
startAtSegmentMicros	to pick
lengthMicros	to pick
event	to pick @on failure

◆ precomputeDeltas()

void Craft::precomputeDeltas	(	const std::function< bool(const SegmentChoice *)> &	choiceFilter,
		const ChoiceIndexProvider &	setChoiceIndexProvider,
		const std::vector< std::string > &	layersInCraftOrder,
		const std::set< std::string > &	layerPrioritizationSearches,
		const int	numLayersIncoming
	)

Precompute all deltas for a given program. This is where deltaIns and deltaOuts values come from.

Precompute deltas dynamically based on whatever is extending the arranger– Don't have anything in this class that's proprietary to beat or detail– abstract that out into provider interfaces

Segments have intensity arcs; automate mixer layers in and out of each main program https://github.com/xjmusic/xjmusic/issues/233

Shift deltas so 2x more time is spent on construction than deconstruction

Vary the high plateau between delta in and out across layers

@on failure

◆ programsDirectlyBound()

std::set< const Program * > Craft::programsDirectlyBound ( const std::set< const Program * > & programs ) const

protected

Filter only the directly bound programs

Parameters

programs to filter

Returns: filtered programs

◆ programsPublished()

std::set< const Program * > Craft::programsPublished ( const std::set< const Program * > & programs )

staticprotected

Filter only the published programs

Parameters

programs to filter

Returns: filtered programs

◆ selectAudioIntensityLayers()

std::set< const InstrumentAudio * > Craft::selectAudioIntensityLayers	(	std::set< const InstrumentAudio * >	audios,
		const int	layers
	)		const

protected

Pick one audio for each desired intensity level, by layering the audios by intensity and picking one from each layer. Divide the audios into layers (ergo grouping them by intensity ascending) and pick one audio per layer.

Parameters

audios	from which to pick layers
layers	number of layers to pick

Returns: picked audios

◆ selectGeneralAudioIntensityLayers()

std::set< const InstrumentAudio * > Craft::selectGeneralAudioIntensityLayers ( const Instrument * instrument ) const

Select audios for the given instrument

Parameters

instrument for which to pick audio

Returns: drum-type Instrument

◆ selectNewChordPartInstrumentAudio()

std::optional< const InstrumentAudio * > Craft::selectNewChordPartInstrumentAudio	(	const Instrument *	instrument,
		const Chord &	chord
	)		const

Select a new random instrument audio based on a pattern event

Parameters

instrument	of which to score available audios, and make a selection
chord	to match

Returns: matched new audio

Member Data Documentation

◆ choiceIndexProvider

ChoiceIndexProvider XJ::Craft::choiceIndexProvider = {}

◆ deltaIns

std::map<std::string, int> XJ::Craft::deltaIns

protected

◆ deltaOuts

std::map<std::string, int> XJ::Craft::deltaOuts

protected

◆ finalizeAudioLengthsForInstrumentTypes

std::set<Instrument::Type> XJ::Craft::finalizeAudioLengthsForInstrumentTypes

protected

The documentation for this class was generated from the following files:

/home/runner/work/xjmusic/xjmusic/engine/include/xjmusic/craft/Craft.h
/home/runner/work/xjmusic/xjmusic/engine/src/craft/Craft.cpp

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Craft()

Member Function Documentation

◆ audiosDirectlyBound()

◆ audiosPublished()

◆ chooseFreshInstrument()

◆ chooseFreshInstrumentAudio()

◆ chooseFreshProgram()

◆ computeDeltaIn()

◆ computeDeltaOut()

◆ computeMute()

◆ craftChordParts() [1/2]

◆ craftChordParts() [2/2]

◆ craftEventParts()

◆ craftNoteEventArrangements()

◆ craftNoteEvents()

◆ inBounds()

◆ instrumentsDirectlyBound()

◆ instrumentsPublished()

◆ isActiveEntireSegment()

◆ isIntroSegment()

◆ isOutroSegment()

◆ isSilentEntireSegment()

◆ isUnlimitedIn()

◆ isUnlimitedOut()

◆ pickInstrumentAudio()

◆ precomputeDeltas()

◆ programsDirectlyBound()

◆ programsPublished()

◆ selectAudioIntensityLayers()

◆ selectGeneralAudioIntensityLayers()

◆ selectNewChordPartInstrumentAudio()

Member Data Documentation

◆ choiceIndexProvider

◆ deltaIns

◆ deltaOuts

◆ finalizeAudioLengthsForInstrumentTypes
